Documentation - UltimateKEYS Keyboard Layout (Windows)

This project is based on US-QWERTY and is forked from the EurKEY Keyboard Layout.

In UltimateKEYS, all keys are exactly organized as US-QWERTY. When AltGr or AltGr+Shift is pressed in combination with another key, other diacritics and symbols are accessible and some keys become dead keys.

In that way, it is - somehow - similar to the layout "United States-International" (on Windows), although this project moves all dead key combinations to the modifiers AltGr and AltGr+Shift. That way, this project solves the most typical caveats, among which the quotes (' and ") can be used as usual (without pressing the spacebar afterwards), while the acute accent (´) and diaeresis (¨) are found under Alt and Alt+Shift respectively.

Keyboard Layout Image

Dead Key Descriptions

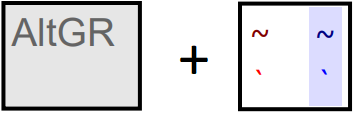

a -> à
A -> À
ä (AltGr + a) -> ą
Ä (AltGr + A) -> Ą
c -> ç
C -> Ç
d -> ḑ
D -> Ḑ
e -> è
E -> È
ë (AltGr + e) -> ę
Ë (AltGr + E) -> Ę
f -> ♀
g -> ģ
G -> Ģ
h -> ḩ
H -> Ḩ
i -> ì
I -> Ì
ï (AltGr + i) -> į
Ï (AltGr + I) -> Į
k -> ķ
K -> Ķ
l -> ļ
L -> Ļ
m -> ♂
n -> ņ
N -> Ņ
ñ (AltGr + n) -> ǹ
Ñ (AltGr + N) -> Ǹ
o -> ò
O -> Ò
ö (AltGr + o) -> ǫ
Ö (AltGr + O) -> Ǫ
r -> ŗ
R -> Ŗ
s -> ş
S -> Ş
t -> ţ
T -> Ţ
u -> ù
U -> Ù
ü (AltGr + u) -> ų
Ü (AltGr + U) -> Ų
w -> ẁ
W -> Ẁ
y -> ỳ
Y -> Ỳ
, (comma) -> ¸  (cedilla)
. (dot) -> ˛  (ogonek)

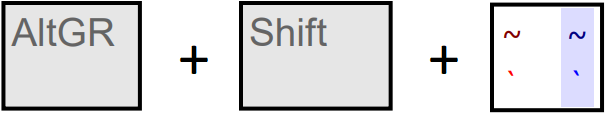

(space) -> `  (grave accent)

a -> ã
A -> Ã
e -> ẽ
E -> Ẽ
i -> ĩ
I -> Ĩ
n -> ñ
N -> Ñ
o -> õ
O -> Õ
s -> ș
S -> Ș
t -> ț
T -> Ț
u -> ũ
U -> Ũ
v -> ṽ
V -> Ṽ
y -> ỹ
Y -> Ỹ
(space) -> ~  (tilde)

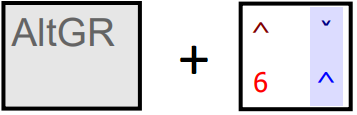

a -> â
A -> Â
c -> ĉ
C -> Ĉ
e -> ê
E -> Ê
g -> ĝ
G -> Ĝ
h -> ĥ
H -> Ĥ
i -> î
I -> Î
j -> ĵ
J -> Ĵ
o -> ô
O -> Ô
s -> ŝ
S -> Ŝ
u -> û
U -> Û
w -> ŵ
W -> Ŵ
y -> ŷ
Y -> Ŷ
z -> ẑ
Z -> Ẑ
(space) -> ^  (circumflex accent)

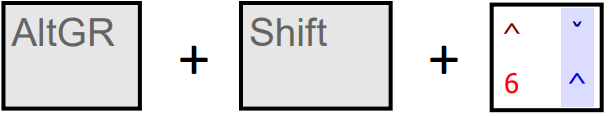

a -> ă
A -> Ă
ä (AltGr + a) -> ǎ
Ä (AltGr + A) -> Ǎ
c -> č
C -> Č
d -> ď
D -> Ď
e -> ĕ
E -> Ĕ
ë (AltGr + e) -> ě
Ë (AltGr + E) -> Ě
g -> ğ
G -> Ğ
é (AltGr + g) -> ǧ
É (AltGr + G) -> Ǧ
h -> ȟ
H -> Ȟ
i -> ĭ
I -> Ĭ
ï (AltGr + i) -> ǐ
Ï (AltGr + I) -> Ǐ
j -> ǰ
k -> ǩ
K -> Ǩ
l -> ľ
L -> Ľ
n -> ň
N -> Ň
o -> ŏ
O -> Ŏ
ö (AltGr + o) -> ǒ
Ö (AltGr + O) -> Ǒ
r -> ř
R -> Ř
s -> š
S -> Š
t -> ť
T -> Ť
u -> ŭ
U -> Ŭ
ü (AltGr + u) -> ǔ
Ü (AltGr + U) -> Ǔ
z -> ž
Z -> Ž
3 (number 3) -> ʒ
# (Shift + 3) -> Ʒ
³ (AltGr + 3) -> ǯ
º (AltGr + Shift + 3) -> Ǯ
. (dot) -> ˘  (breve)
(space) -> ˇ  (caron)

a -> å
A -> Å
ä (AltGr + a) -> ȧ
Ä (AltGr + A) -> Ȧ
b -> ḃ
B -> Ḃ
c -> ċ
C -> Ċ
d -> ḋ
D -> Ḋ
e -> ė
E -> Ė
ë (AltGr + e) -> ȩ
Ë (AltGr + E) -> Ȩ
f -> ḟ
F -> Ḟ
g -> ġ
G -> Ġ
h -> ḣ
H -> Ḣ
i -> ı
I -> İ
m -> ṁ
M -> Ṁ
n -> ṅ
N -> Ṅ
o -> ȯ
O -> Ȯ
p -> ṗ
P -> Ṗ
r -> ṙ
R -> Ṙ
s -> ṡ
S -> Ṡ
t -> ṫ
T -> Ṫ
u -> ů
U -> Ů
w -> ẘ
å (AltGr + w) -> ẇ
Å (AltGr + W) -> Ẇ
x -> ẋ
X -> Ẋ
y -> ẙ
ÿ (AltGr + y) -> ẏ
Ÿ (AltGr + Y) -> Ẏ
z -> ż
Z -> Ż
1 -> (en space)
2 -> (em space)
3 -> (three-per-em space)
4 -> (four-per-em space)
5 -> (six-per-em space)
6 -> (punctuation space)
7 -> (en quad)
8 -> (em quad)
9 -> (figure space, same length as a digit)
0 -> (zero width space)
. (dot) -> ˙  (dot above)
(space) -> ˚  (ring above)

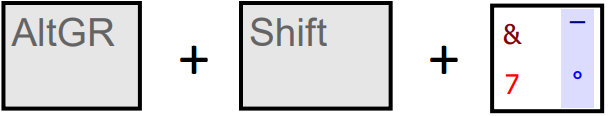

a -> ā
A -> Ā
æ -> ǣ
Æ -> Ǣ
b -> ƀ
B -> Ƀ
d -> đ
D -> Đ
e -> ē
E -> Ē
g -> ḡ
G -> Ḡ
h -> ħ
H -> Ħ
i -> ī
I -> Ī
l -> ł
L -> Ł
ø (AltGr + l) -> ḻ
Ø (AltGr + L) -> Ḻ
o -> ō
O -> Ō
t -> ŧ
T -> Ŧ
u -> ū
U -> Ū
y -> ȳ
Y -> Ȳ
1 -> ‐  (hyphen)
2 -> –  (en dash)
3 -> —  (em dash)
4 -> ―  (horizontal bar)
5 -> ‑  (non-breaking hyphen)
9 -> ‒  (figure dash, same length as a digit)
0 -> (soft hyphen)
(space) -> ¯  (macron)

q -> ¶  (pilcrow sign)
s -> §  (section sign)
c -> ©
p -> ℗
r -> ®
t -> ™
T -> ℠
1 -> №
2 -> ½
3 -> ⅓
4 -> ¼
5 -> ⅔
6 -> ¾
7 -> ⅛
8 -> ⅜
9 -> ⅝
0 -> ⅞
h -> ←
j -> ↓
k -> ↑
l -> →
u -> ↖
n -> ↙
i -> ↗
m -> ↘
= -> ↔
H -> ⇐
J -> ⇓
K -> ⇑
L -> ⇒
U -> ⇖
N -> ⇙
I -> ⇗
M -> ⇘
+ -> ⇔
C -> ¤  (currency sign)
ä (AltGr + a) -> ₳  (austral sign)
í (AltGr + b) -> ₿  (bitcoin sign)
Ç (AltGr + C) -> ₢  (cruzeiro sign)
ð (AltGr + d) -> ₫  (dong sign)
Ð (AltGr + D) -> ₯  (drachma sign)
è (AltGr + f) -> ₣  (French franc sign)
é (AltGr + g) -> ₲  (guarani sign)
ù (AltGr + h) -> ₴  (hryvnia sign)
† (AltGr + k) -> ₭  (kip sign)
ø (AltGr + l) -> ₺  (Turkish lira sign)
Ø (AltGr + L) -> ₤  (lira sign)
ó (AltGr + .) -> ₾  (Georgian lari sign)
ò (AltGr + ,) -> ₼  (Azerbaijani manat)
ñ (AltGr + n) -> ₦  (naira sign)
œ (AltGr + p) -> ₱  (peso sign)
ý (AltGr + r) -> ₽  (Russian ruble sign)
Ý (AltGr + R) -> ₹  (Indian rupee sign)
ß (AltGr + s) -> ₪  (new sheqel sign)
þ (AltGr + t) -> ₸  (tenge sign)
Þ (AltGr + T) -> ₮  (tugrik sign)
å (AltGr + w) -> ₩  (won sign)
a -> ⅍  (Aktieselskab)
d -> ·  (middle dot)
e -> ℮  (estimated symbol)
E -> …  (horizontal ellipsis)
o -> ℓ  (script small l)
O -> Ω  (ohm sign)
y -> ✓  (check mark)
x -> ✗  (ballot x)
ç (AltGr + c) -> ℅  (care of)
- (hyphen-minus) -> ⁃  (hyphen bullet)
. (dot) -> •  (bullet)
| -> ⁞  (vertical four dots)
(space) -> ©  (logical negation sign)

a -> á
A -> Á
b -> ɓ
B -> Ɓ
c -> ć
C -> Ć
ç -> ḉ
Ç -> Ḉ
e -> é
E -> É
i -> í
I -> Í
g -> ǵ
G -> Ǵ
j -> ij
J -> IJ
k -> ḱ
K -> Ḱ
l -> ĺ
L -> Ĺ
m -> ḿ
M -> Ḿ
n -> ń
N -> Ń
o -> ó
O -> Ó
ö (AltGr + o) -> ő
Ö (AltGr + O) -> Ő
p -> ṕ
P -> Ṕ
r -> ŕ
R -> Ŕ
s -> ś
S -> Ś
u -> ú
U -> Ú
ü (AltGr + u) -> ű
Ü (AltGr + U) -> Ű
w -> ẃ
W -> Ẃ
y -> ý
Y -> Ý
z -> ź
Z -> Ź
æ -> ǽ
Æ -> Ǽ
ø -> ǿ
Ø -> Ǿ
(space) -> ´  (acute accent)

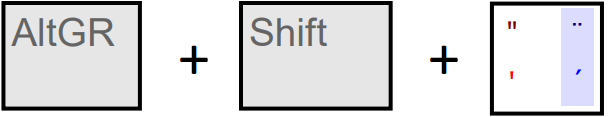

a -> ä
A -> Ä
e -> ë
E -> Ë
h -> ḧ
H -> Ḧ
i -> ï
I -> Ï
o -> ö
O -> Ö
t -> ẗ
u -> ü
U -> Ü
w -> ẅ
W -> Ẅ
x -> ẍ
X -> Ẍ
y -> ÿ
Y -> Ÿ
(space) -> ¨  (diaeresis)

a -> α  (Greek small letter Alpha)
A -> Α  (Greek capital letter Alpha)
b -> β  (Greek small letter Beta)
B -> Β  (Greek capital letter Beta)
v -> β  (Greek small letter Beta)
V -> Β  (Greek capital letter Beta)
g -> γ  (Greek small letter Gamma)
G -> Γ  (Greek capital letter Gamma)
d -> δ  (Greek small letter Delta)
D -> Δ  (Greek capital letter Delta)
e -> ε  (Greek small letter Epsilon)
E -> Ε  (Greek capital letter Epsilon)
z -> ζ  (Greek small letter Zeta)
Z -> Ζ  (Greek capital letter Zeta)
i -> η  (Greek small letter Eta)
I -> Η  (Greek capital letter Eta)
h -> θ  (Greek small letter Theta)
H -> Θ  (Greek capital letter Theta)
j -> ι  (Greek small letter Iota)
J -> Ι  (Greek capital letter Iota)
k -> κ  (Greek small letter Kappa)
K -> Κ  (Greek capital letter Kappa)
l -> λ  (Greek small letter Lambda)
L -> Λ  (Greek capital letter Lambda)

m -> µ  (micro sign)

M -> Μ  (Greek capital letter Mu)
, -> μ  (Greek small letter Mu)
< -> Μ  (Greek capital letter Mu)
n -> ν  (Greek small letter Nu)
N -> Ν  (Greek capital letter Nu)
x -> ξ  (Greek small letter Xi)
X -> Ξ  (Greek capital letter Xi)
o -> ο  (Greek small letter Omikron)
O -> Ο  (Greek capital letter Omikron)
p -> π  (Greek small letter Pi)
P -> Π  (Greek capital letter Pi)
r -> ρ  (Greek small letter Rho)
R -> Ρ  (Greek capital letter Rho)
s -> σ  (Greek small letter Sigma)
S -> Σ  (Greek capital letter Sigma)
. -> ς  (Greek small letter Sigma, in word-final position)
> -> Σ  (Greek capital letter Sigma)
t -> τ  (Greek small letter Tau)
T -> Τ  (Greek capital letter Tau)
y -> υ  (Greek small letter Upsilon)
Y -> Υ  (Greek capital letter Upsilon)
f -> φ  (Greek small letter Phi)
F -> Φ  (Greek capital letter Phi)
c -> χ  (Greek small letter Chi)
C -> Χ  (Greek capital letter Chi)
w -> ψ  (Greek small letter Psi)
W -> Ψ  (Greek capital letter Psi)
q -> ω  (Greek small letter Omega)
Q -> Ω  (Greek capital letter Omega)
u -> ω  (Greek small letter Omega)
U -> Ω  (Greek capital letter Omega)
1 -> ¹  (superscript)
2 -> ²
3 -> ³
4 -> ⁴
5 -> ⁵
6 -> ⁶
7 -> ⁷
8 -> ⁸
9 -> ⁹
0 -> ⁰
- -> ⁻
= -> ⁼
+ -> ⁺
[ -> ⁽
] -> ⁾
! (Shift + 1) -> ₁  (subscript)
@ (Shift + 2) -> ₂
# (Shift + 3) -> ₃
$ (Shift + 4) -> ₄
% (Shift + 5) -> ₅
^ (Shift + 6) -> ₆
& (Shift + 7) -> ₇
* (Shift + 8) -> ₈
( (Shift + 9) -> ₉
) (Shift + 0) -> ₀
; -> ₋
' -> ₌
" -> ₊
{ (Shift + [) -> ₍
} (Shift + ]) -> ₎

(space) -> µ  (micro sign)

! -> ≠
~ -> ≈
= -> ≝
> -> ≥
< -> ≤
- -> ±
i -> ∞
n -> ⁿ
r -> √
3 -> ∛
4 -> ∜
% -> ‰
f -> ƒ
S -> ∫
' -> ′
" -> ″
p -> ∂
d -> Δ
D -> ∇
+ -> ⊕
* -> ⊗
^ -> ℘
s -> ∩
u -> ∪
U -> ∖
O -> ∅
g -> ⊂
G -> ⊃
h -> ⊄
H -> ⊅
b -> ⊆
B -> ⊇
m -> ∈
M -> ∉
k -> ∋
K -> ∌
A -> ∀
E -> ∃
X -> ∄
& -> ∧
| -> ∨
c -> ∝
. -> ⋅
o -> ∘
: -> ∴
; -> ∵
z -> ↯
F -> ∎
R -> ℝ
C -> ℂ
N -> ℕ
P -> ℙ
Q -> ℚ
Z -> ℤ
9 -> ∟
8 -> ∠
7 -> ∡
l -> ∥
L -> ∦
ß (AltGr + s) -> ∑
(space) -> √
